FUNCTION DESCRIPTION

Functions

• Android 5.1.1 operation system;

• Simple and intuitive menu guidance allows you to quickly master the equipment operation;

• Provide complete diagnostic functions including code reading, code clearing, data flow, action test, setting, coding etc;

• Menu arbitrary selection is more convenient and quicker;

• Record and play back real-time data flow, quickly and accurately locate sensor and component faults;

• Wi-Fi connection to the internet, one-click software upgrade;

• One-click remote function, OBDSTAR technical staff remote assistance.

Advanced Function

• The OBDSTAR mobile APP integrates functions such as diag socket location, flash code query, technical bulletin, manual service function(service lamp reset), basic parameters, etc., working with ISCAN to make marine diagnosis more accurately and efficiently;

• Various data flow display modes such as text, waveform diagram and instrument diagram allow you to easily analyze faults.

• Support Air Purging in High Pressure Fuel Lines, Write new engine instance and other special functions.

Diagnostic support series

• Support BFT115 4 Stroke,BFT150 4 Stroke,BFT200 4 Stroke,BFT225 4 Stroke,BFT250 4 Stroke,BFT60 4 Stroke,BFT75 4 Stroke,BFT90 4 Stroke,BFW60 4 Stroke,MFS 100 A,MFS 115 A,MFS 140 Mega,MFS 15E,MFS 20E,MFS 25 B,MFS 25 C,MFS 25 D,MFS 30 B,MFS 30 C,MFS 30 D,MFS 40 A,MFS 40 Mega,MFS 50 A,MFS 60 A,MFS 75 A,MFS 9.9E,MFS 90 A and other models.

Function Display-(From OBDSTAR Mobile App)

1)     Main Page

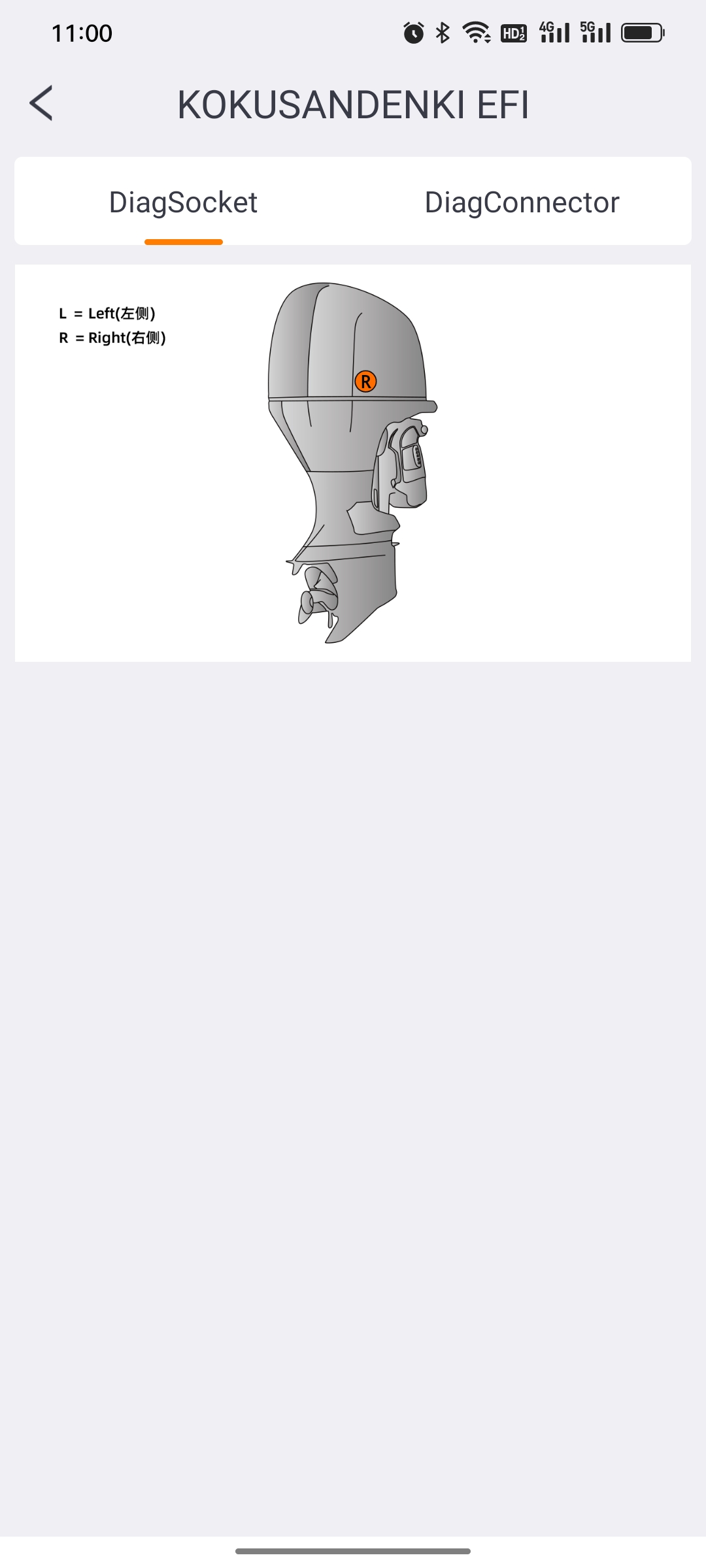

2)     Diag Socket/Diag Connector Location

Function Display-(From ISCAN)

1)     Main Page/Brand Supported

2)    Data Flow Text/Waveform Diagram/Instrument Diagram
