PRODUCT DESCRIPTION

Operation details pls refer to files in Manual column.

Advantages

• Portable Design

• Easy Operation

• High Performance

Instructions

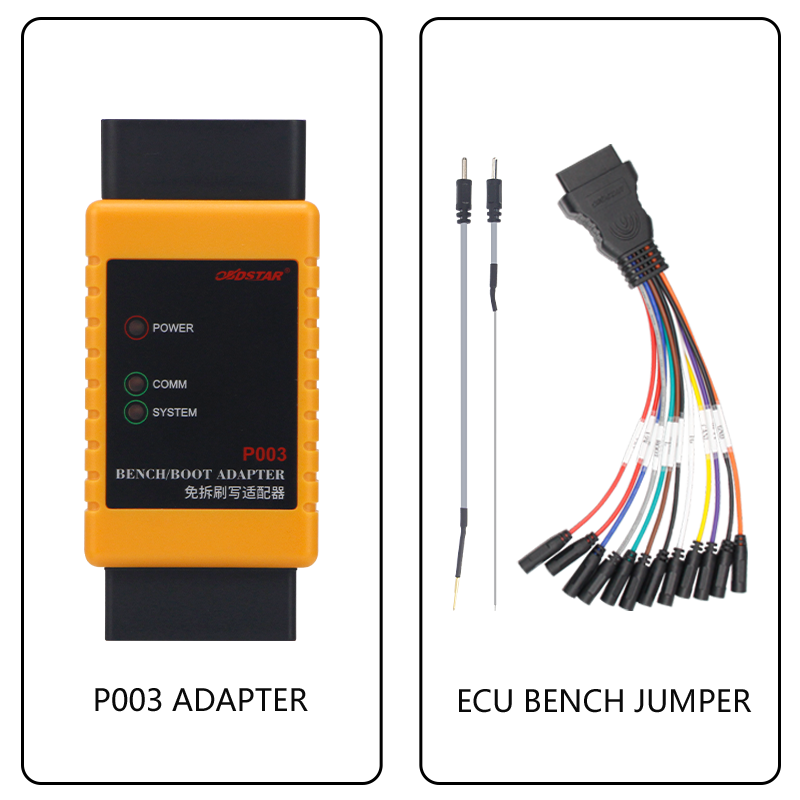

• Works with OBDSTAR IMMO series tablets.


Functions

• Continental PCR 2.1 reading CS, PinCode, MAC value

• Bosch MED17.4.4 reading eeprom , PinCodeP003 KIT

• Bosch EDC17C60 reading eeprom , PinCodeP003 KIT

• Bosch MD1CS018 reading eeprom, PinCodeP003 KIT

• Bosch MED17XX/EDC17XX reading eeprom, flash, CS, PinCode, MAC value

• Bosch ME17XX reading & writing eeprom, flash

• T87A, 6HP reading & writing TCM eeprom, flash

• Support below IMMO functions:

  1) Support TOYOTA 8A non-smart key All keys lost(OBD or BENCH mode)

  2) Support FORD/LINCOLN/MUSTANG All keys lost in alarm active (no need to repeatedly disconnect/connect battery cables)

  3) Support HONDA/SUZUKI/YAMAHA proximity key programming

  Notes: It needs to be used with M053(HONDA smart card dedicated connector) or M054(SUZUKI/YAMAHA smart card dedicated connector), if you need to read the pincode, you need to use it with P001 programmer.

• Support below special models:

  ME9.0

  MED9.1

  MED9.6.1

  ME9.6.1

  MED9.5.10

  EDC16C39

  EDC16CP35

  EDC16C8

  ...

Supported list

1. Continental PCR2.1(TC1796)

• 2010-2014 Audi A1 (8X) 1.6L Diesel


• 2009-2012 Audi A3 (8P) 1.6L Diesel


• 2009-2013 Seat Altea 1.6L Diesel


• 2010-2016 Seat Ibiza IV (6J) 1.6L Diesel


• 2010-2012 Seat Leon II 1.6L Diesel


• 2014 Seat Toledo (KG) 1.6L Diesel


• 2010-2013 Skoda Octavia II (1Z) 1.6L Diesel


• 2010-2013 Skoda Fabia II (5J) 1.6L Diesel


• 2010-2011 Skoda Roomster (5J) 1.6L Diesel


• 2013-2014 Skoda Rapid (NH) 1.6L Diesel


• 2011-2013 Skoda Superb (3T) 1.6L Diesel


• 2012/2015 Skoda Yeti (5L) 1.6L Diesel


• 2010-2015 VW Caddy (2K) 1.6L Diesel


• 2009-2013 VW Golf VI 1.6L Diesel


• 2010-2013 VW Golf Plus 1.6L Diesel


• 2011-2014 VW New Beetle (9C) 1.6L Diesel


• 2011 VW Passat (B7) 1.6L Diesel


• 2009-2014 VW Polo V 1.6L Diesel


• 2010-2015 VW Touran (1T) 1.6L Diesel

       ...

2. Bosch MED17.4.4(TC1793)

• Citroen C3 Mk2

• Citroen C4 Gran Picasso

• Citroen C4 MK2

• Citroen C5 (RD/TD)

• Citroen C6

• DS DS3

• DS DS5

• DS DS6

• Peugeot 2008

• Peugeot 208

• Peugeot 3008 (P84)

• Peugeot 3008 (T84)

• Peugeot 308 (T9)

• Peugeot 4008

• Peugeot 408

• Peugeot 508

  ...

3. Bosch EDC17C60(TC1793)

• Citroen Berlingo

• Citroen C-Elysee

• Citroen C3 Aircross

• Citroen C3 MK2

• Citroen C3 Picasso

• Citroen C4 Cactus

• Citroen C4 MK2

• Citroen C4 Picasso

• Citroen Jumpy

• Citroen Spacetourer

• DS DS3

• DS DS4

• DS DS5

• Peugeot 2008

• Peugeot 208

• Peugeot 3008 (P84)

• Peugeot 308 (T9)

• Peugeot 5008 (T87-P87)

• Peugeot 508

• Peugeot Expert

• Peugeot Ranch/Partner

• Peugeot Traveller

• Opel/Saturn/Vauxhall Combo E

• Opel/Saturn/Vauxhall Crossland X

• Opel/Saturn/Vauxhall Grandland X

• ToyotaProace

  ...

4. Bosch MD1CS018

• Mahindra BS-6

       ...

5. Bosch MED17XX/EDC17XX

• EDC17U01(TC1766)

• EDC17C46(TC1767)

• EDC17C54(TC1797)

• EDC17C64(TC1797)

• EDC17CP44(TC1797)

• EDC17CP44 MS(TC1797)

• MED17.5(TC1766)

• MED17.5.1(TC1766)

• MED17.5.20(TC1766)

• MED17.5.5(TC1766)

• MED17.5.5 HW2(TC1766)

• MED17.5.2(TC1767)

• MED17.5.5(TC1767)

• MED17.5.5 HW2(TC1767)

• MED17.5.21(TC1782)

• MED17.5.25(TC1782)

• MED17.1.1(TC1797)

• MED17.1.1 MS(TC1797)

• MED17.1.6(TC1797)

      ...

• VW/Skoda/Audi/Seat, Bentley, Lamborghini, Porsche...

6. Bosch ME17XX

• ME17.5.6(TC1767)

• ME17.5.20(TC1767)

• ME17.1.1(TC1797)

• ME17.1.6(TC1797)

    ...

• VW/Audi/Skoda/Seat, Bentley...
