P004 BASIC KIT

P004 basic kit works with KeyMaster G3, P50 from OBDSTAR for airbag reset. It's friendly, economical, convenient to vehicle repair plants and fast repair shops.

Description

Works with KeyMaster G3, P50 for Airbag Reset

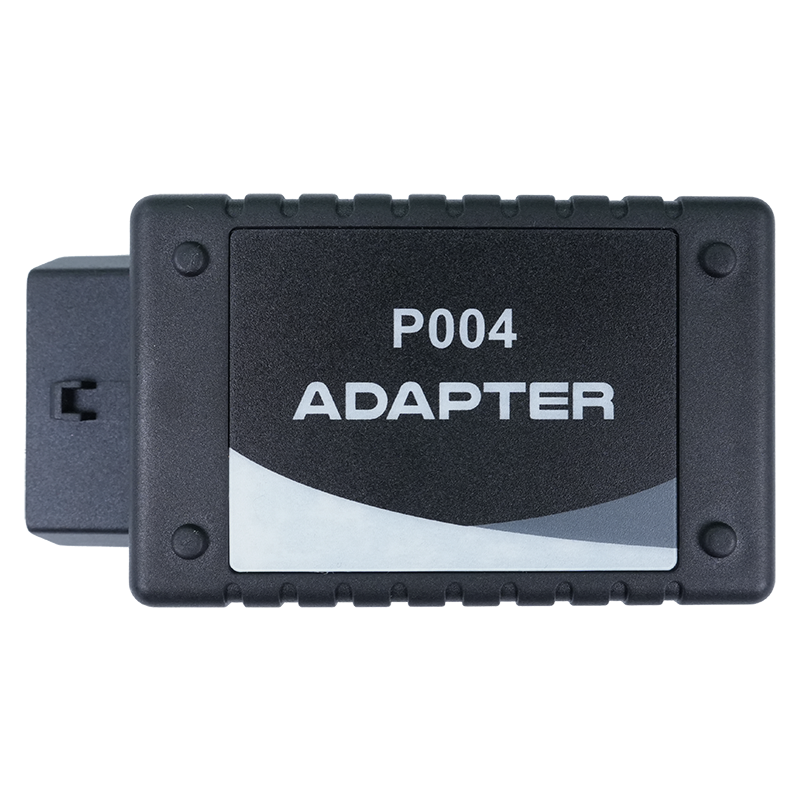

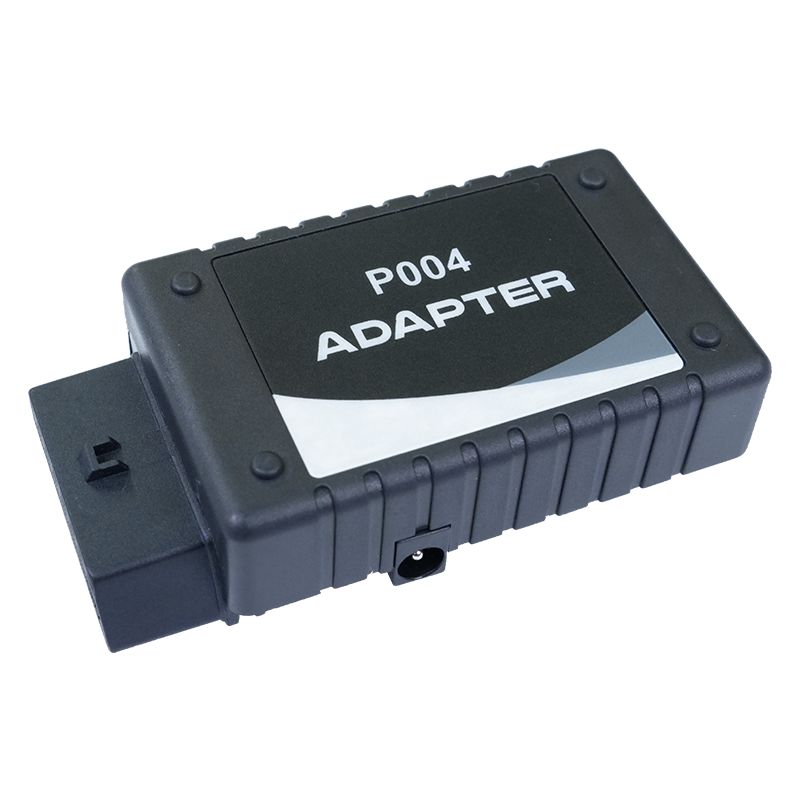

P004 adapter is designed for ECU programming, reading or writing data in bench mode. It has merits below:
1. Programming devices keep in normal communication no matter turn on or off 12V power button;
2. Turn on or off 120Ω resistance at any time for CANBUS ECU;
3. Support 6&14 and 3&11 CANBUS communication at the same time;
4. Support GM Single CAN(GM SCAN);
5. Support K communication;

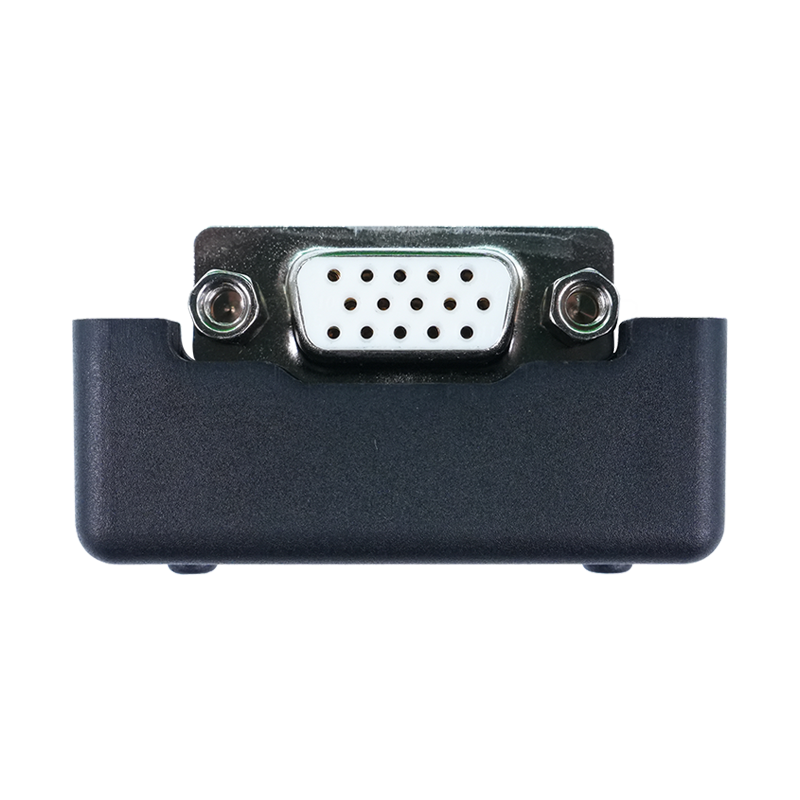

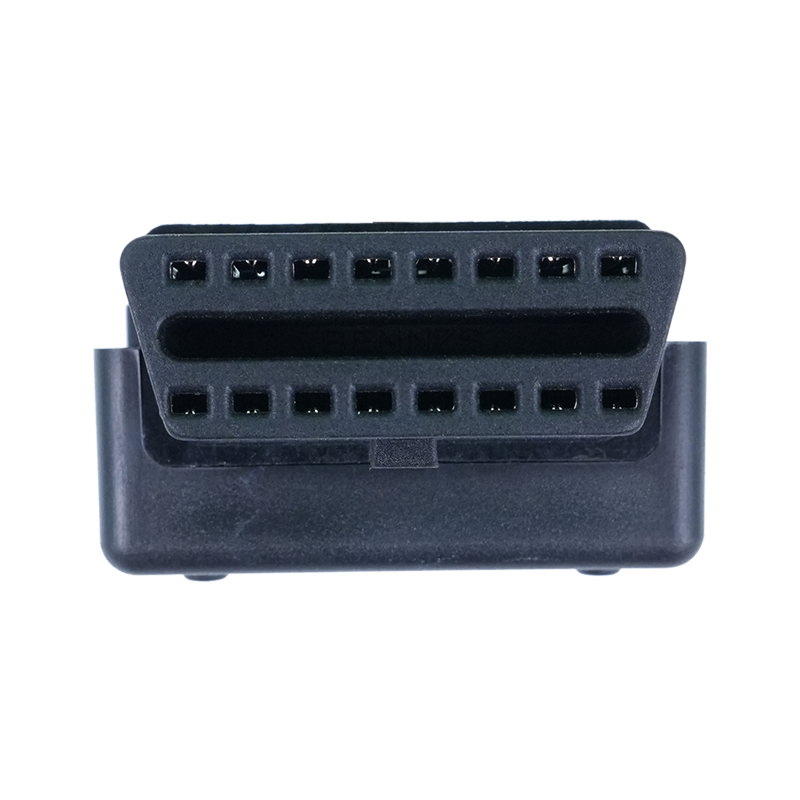

6. DB15 connector can communicate with any OBDII-16 I/O interface;

7. This adapter can be used as a diagnostic platform in conjunction with third-party devices to perform ECU diagnostics or remote operations.

Specifcations

Product video

Manual

No Data

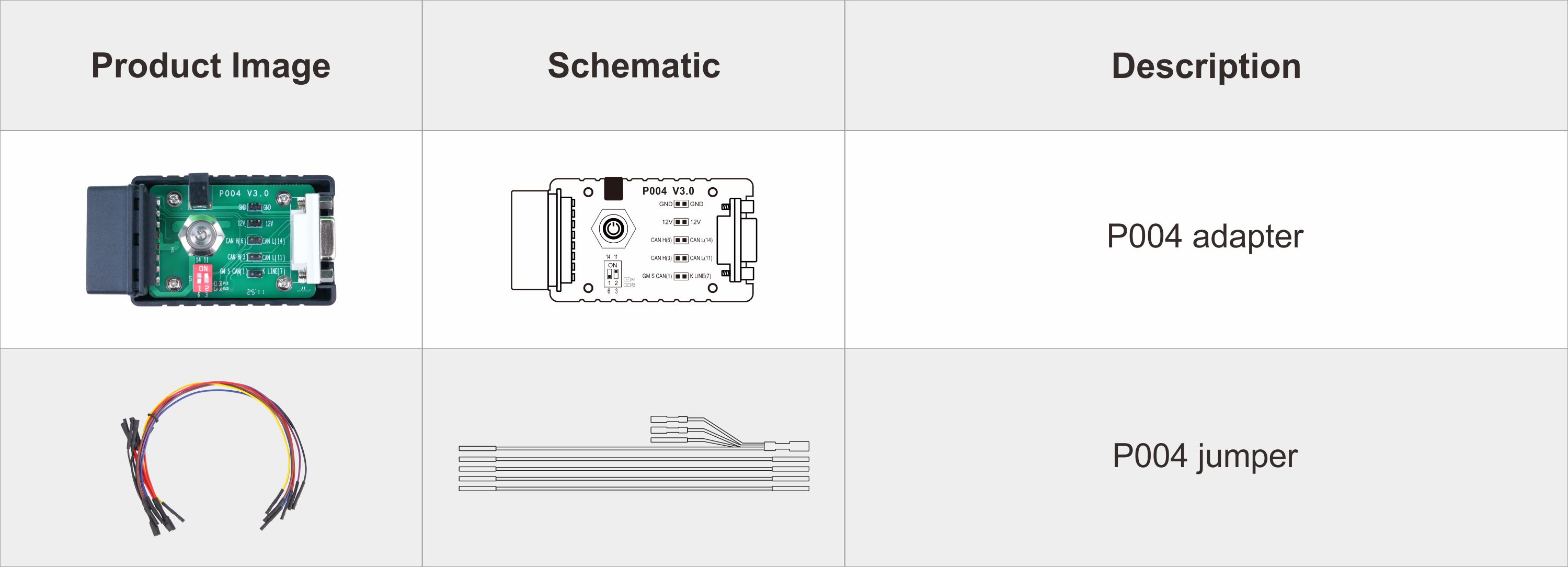

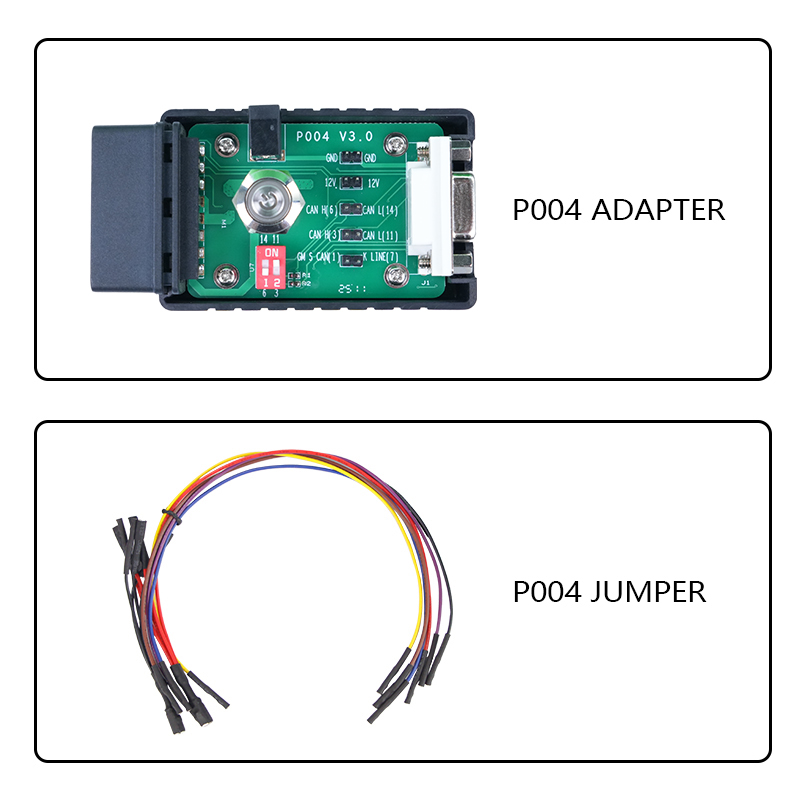

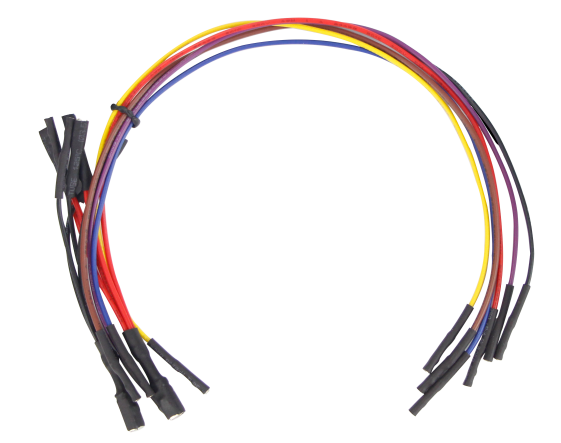

Accessories

P004 BASIC KIT

请输入文本内容

FAQ

请输入文本内容

Description
Specifications
Product video
Function Manual
Accessories
FAQ

Works with KeyMaster G3, P50 for Airbag Reset

7. This adapter can be used as a diagnostic platform in conjunction with third-party devices to perform ECU diagnostics or remote operations.

No Data

P004 BASIC KIT

Q: What is the role of the red switch on the P004?

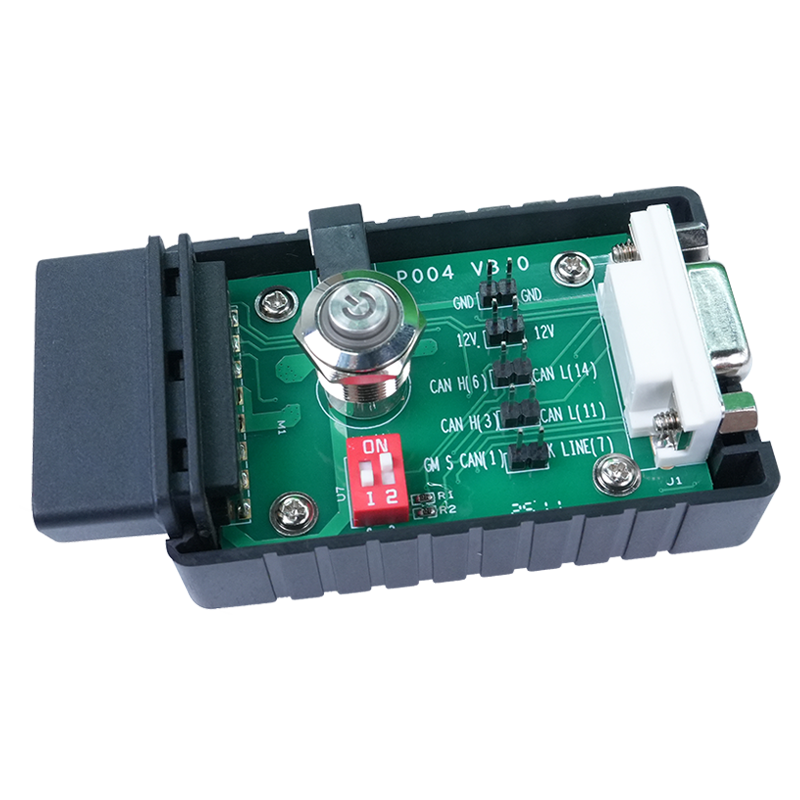

A: The red switch on P004 is used to control the CAN communication termination resistor. Switch #1 corresponds to high speed CAN communication and switch #2 corresponds to vulgar CAN communication. The switch should remain in the ON position when the CAN line termination resistor is required.

Q: There are two groups of CAN H and CAN L on the P004, can I access one of them at will?

A: No. The two groups of pins correspond to high speed CAN type and low speed CAN type. According to the wiring definition of the device, use the CAN communication pins with corresponding numbers.
