KEY MASTER 5

Key Master 5 is an all-purpose immobilizer programming device meticulously designed by OBDSTAR for locksmith. The device inherits the automobile immobilizer programming technology from OBDSTAR with a lot of advantages of early start, wide vehicle coverage, fast programming speed and special features. All-in-one machine structure, more convenient to use, full optimization hardware, running more stable, faster and smoother.

Description

PRODUCT DESCRIPTION

Hardware Advantages

Built-in VCI box
5-inch touchscreen
Charge directly via OBD interface
P001 programmer: EEPROM adapter + RFID adapter + key renew adapter
IMMO induction coil to detect the key induction coil failure of the vehicle

FUNCTION DESCRIPTION

Add 'Help' Functions

Including built-in testable vehicle models, upgrade announcement, features, help notes and wiring diagrams etc
Carlist and upgrade announcement, all details are available on the device
Customers can look up the features or uniquely support functions on the device
Help notes: built-in help notes for each model or function

Specifcations

Operation system	Android 5.1.1
CPU	RK3128 quad-core ARM cortex A7
Battery	2600mA, rechargeable polymer lithium battery
Extension memory card	32G micro SD (TF) card supported
LCD	5.0 inch
LCD resolution	800*480
Touch screen	Capacitive touch screen
Wifi	Supported
Working temperature	-10℃—55℃ (14℉—131℉)
Storage temperature	-20℃—70℃ (-4℉—158℉)
Weight	About 700g
Dimension	198mm115mm31mm

Product video

Manual

KEY MASTER 5 COVERAGE 20260715

Download

/Private/Files/6391973616161536531107850151.zip

KEY MASTER 5 User Manual

Download

/Private/Files/638484267361025082398258448.pdf

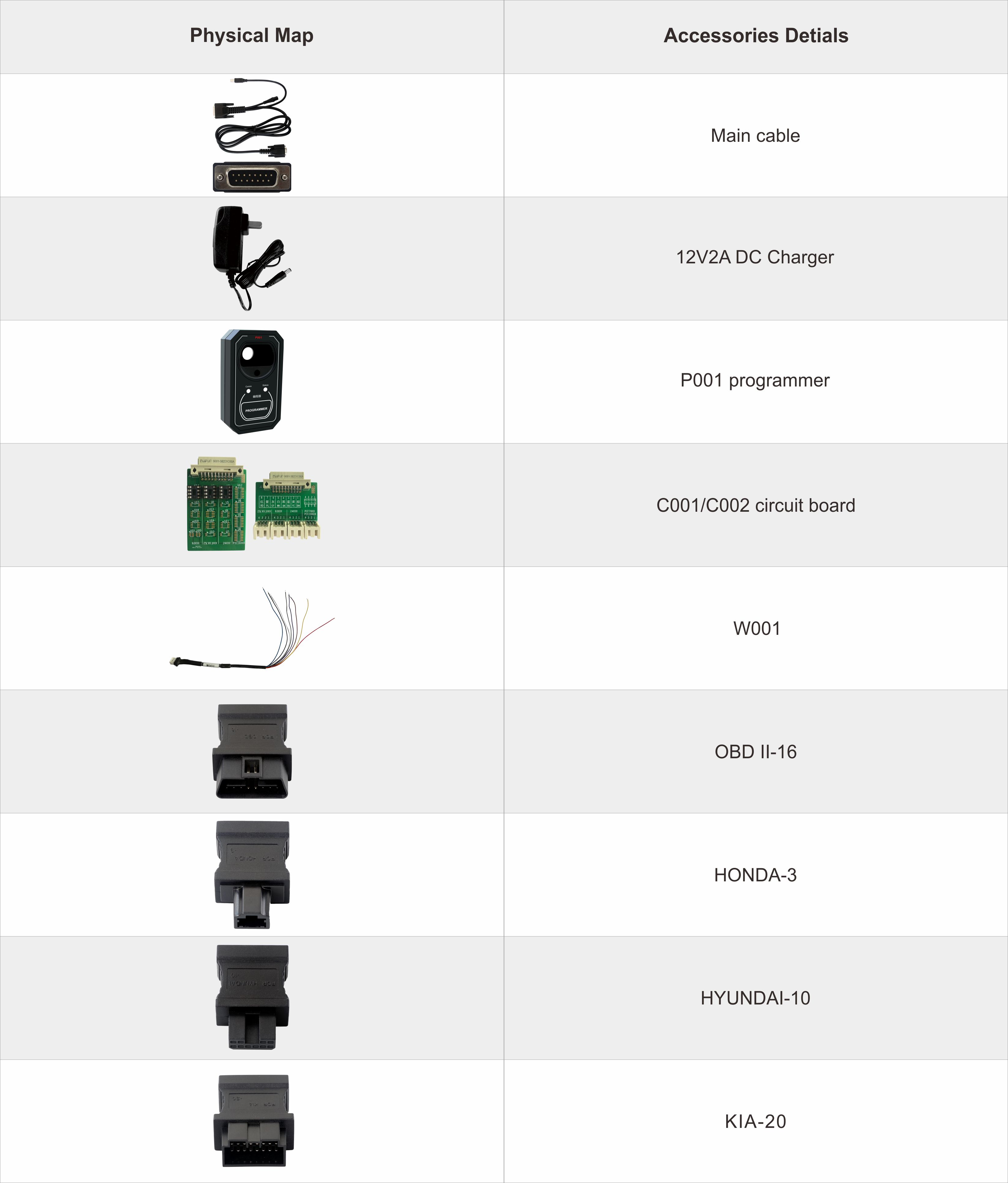

Accessories

KEY MASTER 5

请输入文本内容

FAQ

请输入文本内容

Description
Specifications
Product video
Function Manual
Accessories
FAQ

PRODUCT DESCRIPTION

Hardware Advantages

Built-in VCI box
5-inch touchscreen
Charge directly via OBD interface
P001 programmer: EEPROM adapter + RFID adapter + key renew adapter
IMMO induction coil to detect the key induction coil failure of the vehicle

FUNCTION DESCRIPTION

Add 'Help' Functions

Including built-in testable vehicle models, upgrade announcement, features, help notes and wiring diagrams etc
Carlist and upgrade announcement, all details are available on the device
Customers can look up the features or uniquely support functions on the device
Help notes: built-in help notes for each model or function

Operation system	Android 5.1.1
CPU	RK3128 quad-core ARM cortex A7
Battery	2600mA, rechargeable polymer lithium battery
Extension memory card	32G micro SD (TF) card supported
LCD	5.0 inch
LCD resolution	800*480
Touch screen	Capacitive touch screen
Wifi	Supported
Working temperature	-10℃—55℃ (14℉—131℉)
Storage temperature	-20℃—70℃ (-4℉—158℉)
Weight	About 700g
Dimension	198mm115mm31mm

KEY MASTER 5 COVERAGE 20260715

/Private/Files/6391973616161536531107850151.zip

Download

KEY MASTER 5 User Manual

/Private/Files/638484267361025082398258448.pdf

Download

KEY MASTER 5

Q: Where can I find a list of supported functions for a product?

A: You can download the list of supported models for each module from the “Function Manual” on the product page of our official website, and we usually synchronize the update at the end of each month.

Q: Is it possible to activate ODO and Airbag Reset functions?

A: Not supported.

Q: Does the device need the annual subscription fee?

A: Our current policy is that upgrades are free for 1 year from the time of registration. From the 2nd year of device usage, there will be an annual subscription fee.
