Background

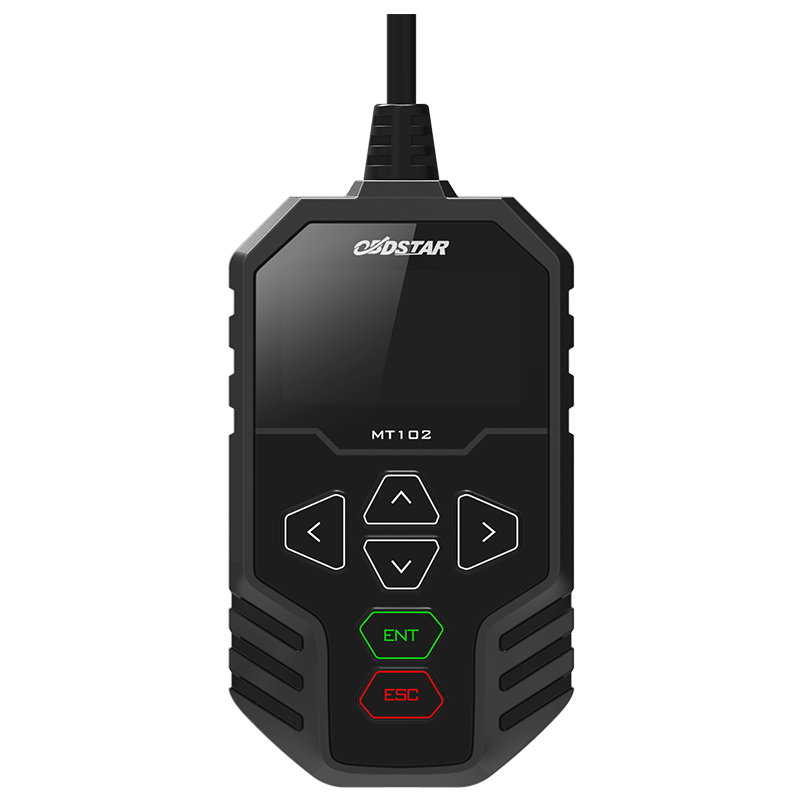

Nowadays, many cars have dashboard, audio, gear lever, handbrake modules, etc., which are activated by CAN communication with the relevant modules in the car to bring the mainframe into the drive state, but sometimes when the car mechanic is servicing the mainframe, the mainframe is disconnected from the CANBUS network of the vehicle, thus making it impossible to switch on. This tool can simulate CAN communication to activate the secondary power supply and bring the main unit into drive, so that the main unit can be tested and verified. It also eliminates the need to purchase a large number of boot platforms and wiring harnesses for each vehicle model, saving a large amount of money for the automotive mechanic.
Features
1. using STM32 processor, fast running speed.
2. supporting Land Rover/Jaguar gear lever drive, which can perform all gears switching with each other on the workbench.
3. using special connector for gear lever, safe and fast connection.
4. easy and intuitive menu for you to quickly master the operation of the tool.
5. the wiring diagram can be accessed via OBDSTAR APP.
6. the tool is portable and cost-effective.
7. Mini USB upgrade cable connects directly to the computer for one-click upgrade.
Supported brands
Land Rover
Jaguar
...
OBDSTAR mobile APP function diagram
1) Main interface of Test Platform
2）Instructions for using gear lever
